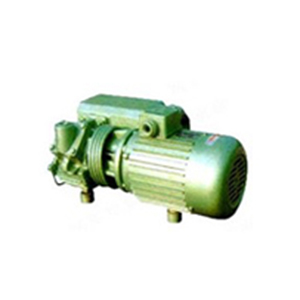

XD single stage rotary vane vacuum pump
Product Details
XD single stage rotary vane vacuum pump product overview:
The XD series vacuum pump for cascaded single shaft type structure and its working performance is high speed, low noise, high pumping speeds, high efficiency, pump air cooling, anti oil return structure, to prevent the pump oil return are pumping system, pump is arranged in the exhaust filter, effectively eliminate oil mist, balanced running, small vibration, can work under any pressure. The technical parameters of the pump 2 x 10-2, has been widely applied to the use of food vacuum packaging, medicine, printing machinery and paper transport, glass industrial conveyor, vacuum fixtures, drying and other units.
| XD single stage rotary vane vacuum pump | ||||
| XD-010 | 10 | 2×0.01 | 0.37 | 1450 |
| XD-020 | 20 | 2×0.01 | 0.75 | 3000 |
| XD-040 | 40 | 2×0.01 | 1.1 | 1450 |
| XD-063 | 63 | 2×0.01 | 1.5 | 1450 |
| XD-100 | 100 | 2×0.01 | 1.5 | 1450 |
| XD-160 | 160 | 2×0.01 | 4 | 1450 |
